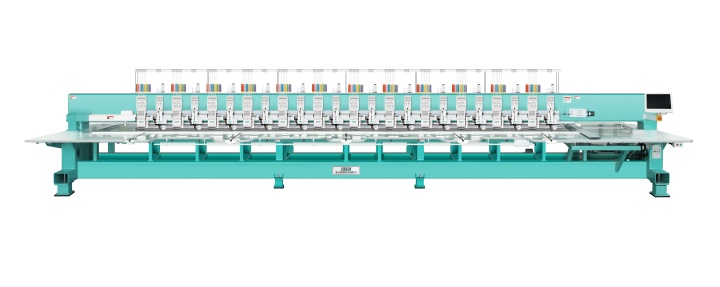

Mixed tapping embroidery machine

Product application"

This series gathers flat embroidery, tapping embroidery, coiling embroidery, flat belt embroidery, bead embroidery function, widely used in bedding, children's wear, women's wear. It is fully functional and has high cost performance, which helps customers to build a strong competitive advantage.
  • Main technology and feature:
  • General specification
  • Work Video
  • Additional device

Main technology and feature:

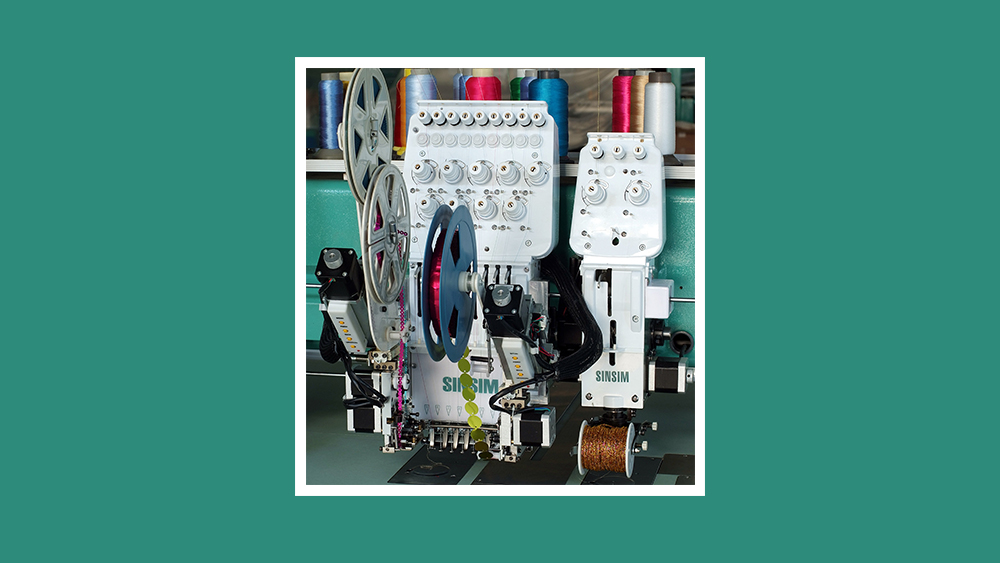

1.Integrated with flat embroidery, sequins, tapping, the operation mode is flexible and changeable
2.Automatic transfer of flat embroidery machine head and tapping head make the flat embroidery and tapping free of change
3.It can adjust the distance between the needle plate and the lowest point of the presser foot dropping as well as the working height of the presser foot directly on computer according to the thickness of cloth
4.After the tapping head embroidery is finished, the press foot can be automatically raised, the material disk will automatically return to the origin, and enter into the waiting status, convenient to change the frame and more feed plate and so on.
5.Many embroidery effect can be achieved through the selection of accessories and the reference of computer, such as coiling embroidery, flat belt embroidery, tapping embroidery, feather - like embroidery, serrated embroidery.

General specification

TypeNumber of threadsHeadageHead distance mmEmbrodery Area mmInner frame size mmMachine size mm
MT-60262350+250880*9001770*9403610*2437
MT-60464350+250900*9002990*9404950*2327
MT-60868300+250800*8305010*8706840*2177
MT-910910310+240900*8406160*8808090*2207
MT-612612300+200800*9006540*9408400*2327
MT-918918360+3001100*110012660*114014960*2727
MT-622622250+200850*100010540*104012610*2557
MT-625625220+160800*110010210*114012120*2747
